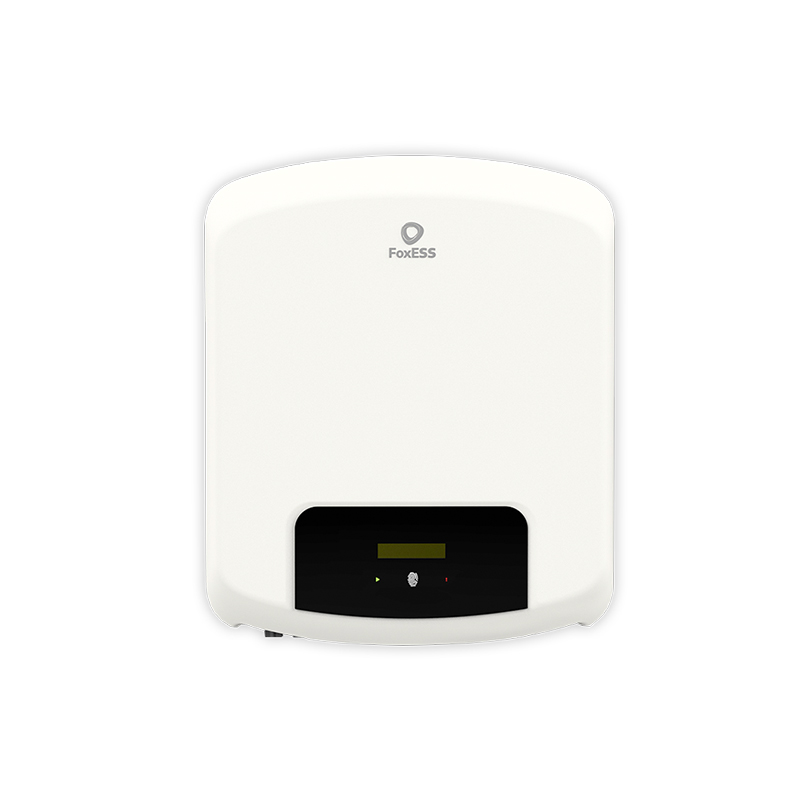

FoxESS F3600 Inverter – Single-phase, 2 MPPTs, Wi-Fi, 12-year warranty

The FoxESS F3600 inverter is a modern, high-performance device for photovoltaic installations, ideal for single-family homes and smaller facilities. Featuring single-phase technology and two independent MPPT trackers, the inverter ensures optimal system performance, even when different sections of the roof receive varying levels of sunlight. Integrated Wi-Fi allows for convenient system monitoring from anywhere via a mobile app.

Key features:

• Rated power: 3600 W
• Type: Single-phase inverter
• MPPT: 2 independent MPPT trackers for performance optimization
• Communication: Built-in Wi-Fi for remote monitoring
• High efficiency: The inverter ensures high energy conversion efficiency from PV panels, even under challenging conditions.
• Warranty: 12-year warranty, ensuring device reliability and longevity.
• Safety: Certified compliance with international quality and safety standards.

Advantages:

• Remote monitoring: Thanks to Wi-Fi and the mobile app, users can track their system's performance in real-time and receive notifications about potential issues.
• Versatility: Ideal for smaller photovoltaic installations, ensuring optimal performance even with uneven sunlight exposure.
• Ease of installation: The FoxESS F3600 inverter is simple to install and configure, allowing for quick system startup.

Technical specifications:

• Inverter type: Single-phase
• Nominal power: 3600 W
• Input voltage range: 90 V – 600 V
• Number of MPPTs: 2
• Efficiency: up to 98,2%
• Warranty: 12 years
• Built-in Wi-Fi: Yes
• Dimensions: 402 x 476 x 148 mm
• Weight: 15,5 kg
• Certifications: CE, IEC 62109-1, IEC 62109-2

Application:

The FoxESS F3600 inverter is an ideal choice for small to medium-sized photovoltaic installations in homes, small businesses, and buildings with low energy consumption. Thanks to dual MPPTs, the system operates efficiently even under conditions of varying sunlight across different sections of the roof.

Recommendations:

• Installation should be performed by a certified installer.
• The product should be used in accordance with the user manual to ensure optimal performance and system longevity.

The FoxESS F3600 is an inverter that combines modern technology, reliability, and ease of use, providing users with excellent support in creating eco-friendly and cost-effective energy solutions.
