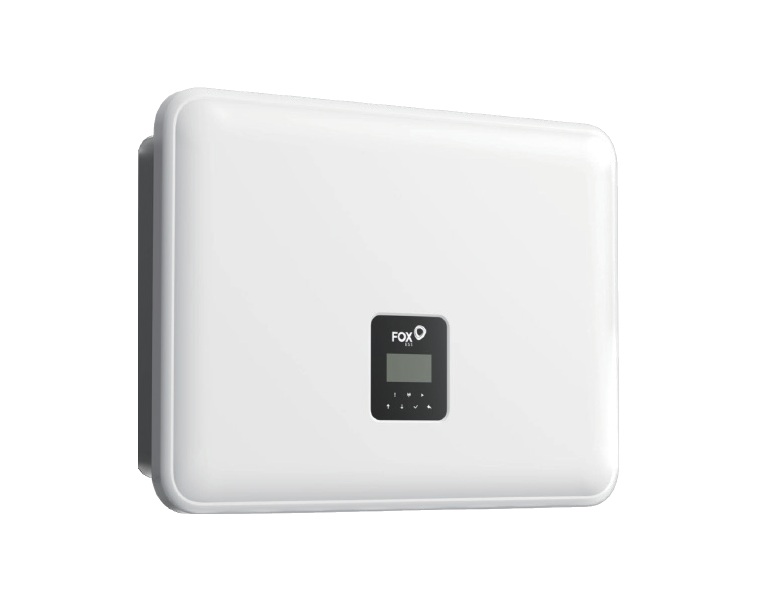

The P3-6.0-SH model is a technologically advanced hybrid inverter that enables simultaneous operation with a PV system and an energy storage unit. Thanks to its high efficiency, wide voltage range, and comprehensive safety features, it is an ideal solution for modern residential and commercial installations.

Key technical specifications:

• Nominal power: 6000 W
• Maximum PV power: 14000 W
• Max. efficiency: up to 97,7%
• MPPT efficiency: 99,9%
• 2 independent MPPTs (20 A each), MPPT voltage range: 120–950 V
• Compatibility with LFP (lithium iron phosphate) batteries, voltage: 100–800 V (EP5 and EP11)
• Max. charge/discharge current: 50 A
• EPS function – emergency power supply with switching time <20 ms
• Protection rating: IP65 – for outdoor installation
• Communication: WiFi, LAN, RS485, CAN, 4G (optional)
• Remote monitoring via FoxCloud V2.0
• Built-in protections: AFCI (optional), Type II surge protection (AC/DC), short-circuit, insulation, leakage current
• Passive cooling, noise level <40 dB
• 10-year manufacturer's warranty
• EPS function – emergency power supply (peak power up to 9,6 kVA), up to 1/3 of the device's power per phase. To utilize the inverter's full power in emergency mode, an EPS Box must be purchased separately. and increases self-consumption and energy independence.

Application: The P3-6.0-SH inverter is ideally suited for PV installations with energy storage in single-family homes, offices, and small businesses. It enables efficient energy management
