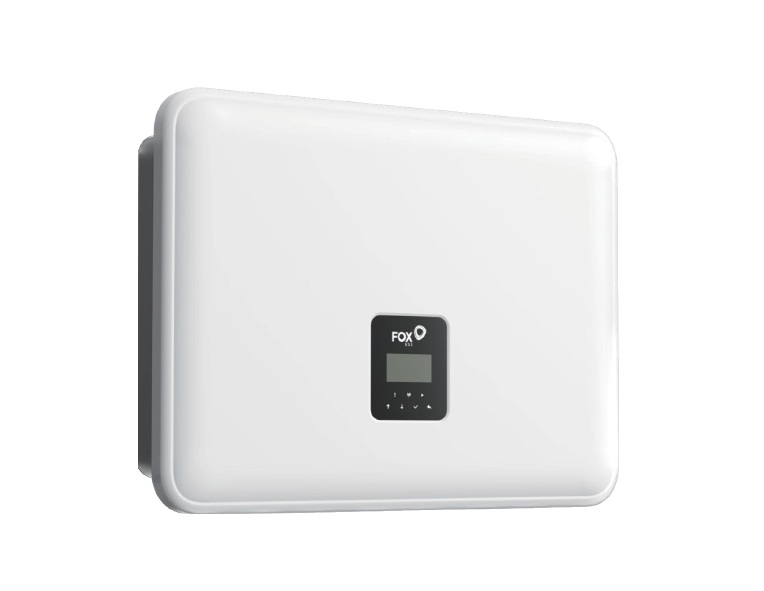

The FoxESS P3-5.0-SH inverter is a modern, premium-class, three-phase hybrid unit designed for photovoltaic installations with energy storage—suitable for both residential and commercial sectors.

Key technical specifications:

• Nominal AC power: 5 000 W
• Max. PV power: 11 000 W
• Number of MPPTs: 2 independent channels (1+1)
• MPPT voltage range: 120–950 V
• Battery type: Lithium Iron Phosphate (LFP), voltage 100–800 V
• Max. charge/discharge current: 50 A
• Maximum efficiency: up to 97,9%
• MPPT efficiency: 99,9%
• Protection rating: IP65 (suitable for outdoor installation)
• Weight: approx. 34 kg

Features and benefits:

• Hybrid functionality: enables simultaneous operation with the grid and energy storage.
• Remote monitoring: via mobile app, web portal, and the FoxCloud V2.0 platform.
• Communication: WiFi, LAN, 4G (optional), CAN, RS485.
• Safety: comprehensive protection suite (short-circuit, overvoltage, insulation monitoring, AFCI – optional).
• SG-Ready: ready for integration with smart loads.
• Plug & Play Play: quick installation and intuitive configuration.
• EPS function – emergency power supply (peak power up to 9,6 kVA), providing up to one-third of the device's rated power per phase. To utilize the inverter's full power capacity in emergency mode, an EPS Box must be purchased separately.

This device combines high performance with flexibility and reliability, making it an excellent choice for modern PV installations with energy storage.
