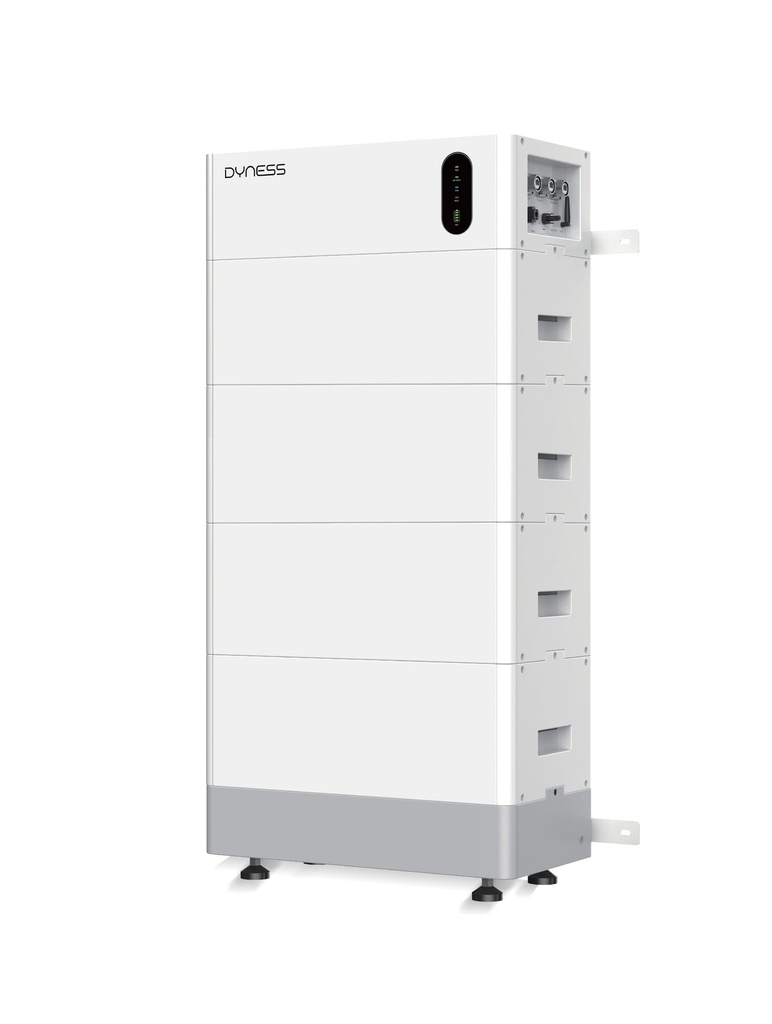

Dyness Tower Pro TP15 is a high-voltage energy storage system based on LiFePO₄ technology, designed for domestic, commercial and industrial applications. Thanks to its modular design, it offers scalability, ease of installation and a high level of safety.
Specifications
| Parameter | Value |
|---|---|
| Number of modules | 4 |
| Total capacity | 15,36kWh |
| Useful capacity | 14,592kWh (95% DoD) |
| Nominal voltage | 384V |
| Operating voltage range | 336-438V |
| Rated current | 40Ah |
| Maximum charging/discharging power | 15,36 kWh (1C) |
| Dimensions (W × D × H) | 587 × 310 × 1230 mm |
| Net weight | aprox. 170,5kg |
| Protection rating | IP55 |
| Operating temperature | -20°C to +55°C (with heating option) |
| Lifetime | ≥8000 cycles |
| Warranty | 10 or 15 years (depending on registration) |
Safety and smart features
- Integrated fire extinguishing system: aerosol, automatically activated
- Remote monitoring and OTA updates: via WiFi
- Communication: CAN, RS485, RS232
- LED display: on the BDU control unit
- Compatibility with inverters: Kostal, GoodWe, Solis, Deye, Growatt, Hoymiles, ATESS
- Heating function - optional depending on the series (to be confirmed with Customer Service).
Scalability
- Expandable to 6 modules in one tower (up to 23.04 kWh)
- Possibility of connecting up to 12 towers in parallel – maximum capacity: 276.48 kWh
It is a solid choice for those seeking an efficient, safe, and flexible energy storage system.
Dyness Tower Pro TP15 - 15,36kWh HV // (BDU + 4x batteries)
DynessTower-TP15
| Brand: Dyness |
