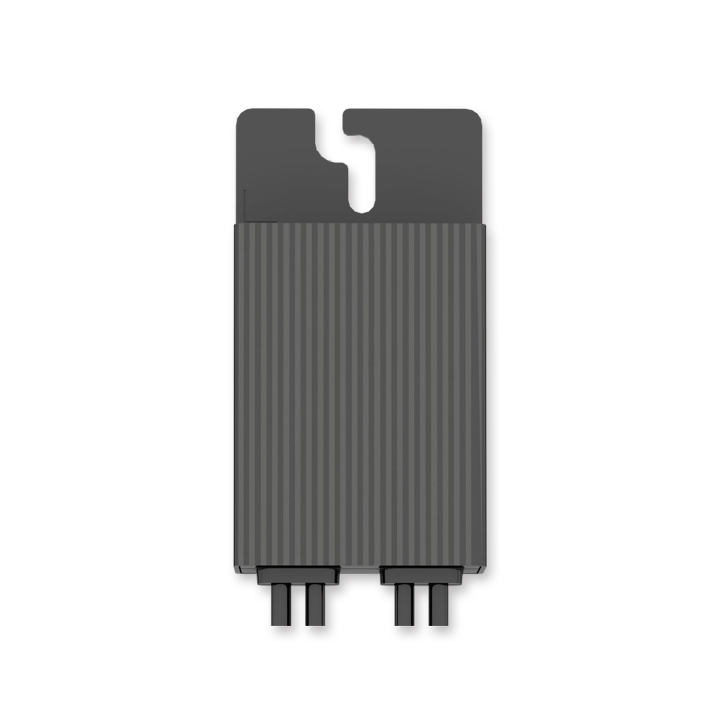

The Huawei MERC-600W-PA0 is a modern power optimizer designed for photovoltaic systems based on Huawei SUN2000 inverters. The device increases energy yield by performing individual Maximum Power Point Tracking (MPPT) for each PV module, mitigating losses caused by shading, variations in panel orientation, or natural aging. With its high efficiency and intelligent communication with the Huawei FusionSolar system, this optimizer is an ideal solution for both residential and commercial installations.

Key features

• Individual optimization of each photovoltaic module’s performance,
• Increased energy production in cases of partial shading,
• Maximum efficiency of 99,5%,
• Automatic bypass of a faulty optimizer, ensuring the system continues to operate,
• MBUS communication, eliminating the need for additional wiring,
• Safety feature that reduces module voltage to 1 V when the inverter is shut down,
• IP68 protection rating, ensuring reliable operation in harsh weather conditions,
• Quick installation thanks to Staubli MC4 connectors.

Intelligent energy management

The MERC-600W-PA0 monitors the performance of each PV module independently, allowing the system to achieve higher energy yields even when some panels are shaded or installed at different angles. This solution is perfectly suited for roofs with complex structures and installations prone to periodic shading.

Installation Safety

The Huawei optimizer supports a rapid shutdown function, lowering the voltage of PV modules when the inverter is switched off, thereby enhancing safety for users and service personnel. In the event of a failure in an individual optimizer, an automatic bypass is activated, ensuring that the rest of the system continues to operate without interruption.

Technical Specifications

• Rated PV module power: up to 720 Wp
• MPPT voltage range: 10–80 V
• Maximum input voltage: 80 V
• Maximum output current: 16 A
• Maximum efficiency: 99,5%
• Weighted efficiency: 99.0%
• Communication: MBUS
• Connectors: Staubli MC4
• Ingress protection rating: IP68
• Operating temperature: -40°C to +85°C
• Dimensions: 145 × 73,8 × 27,2 mm
• Weight: 0,65 kg
