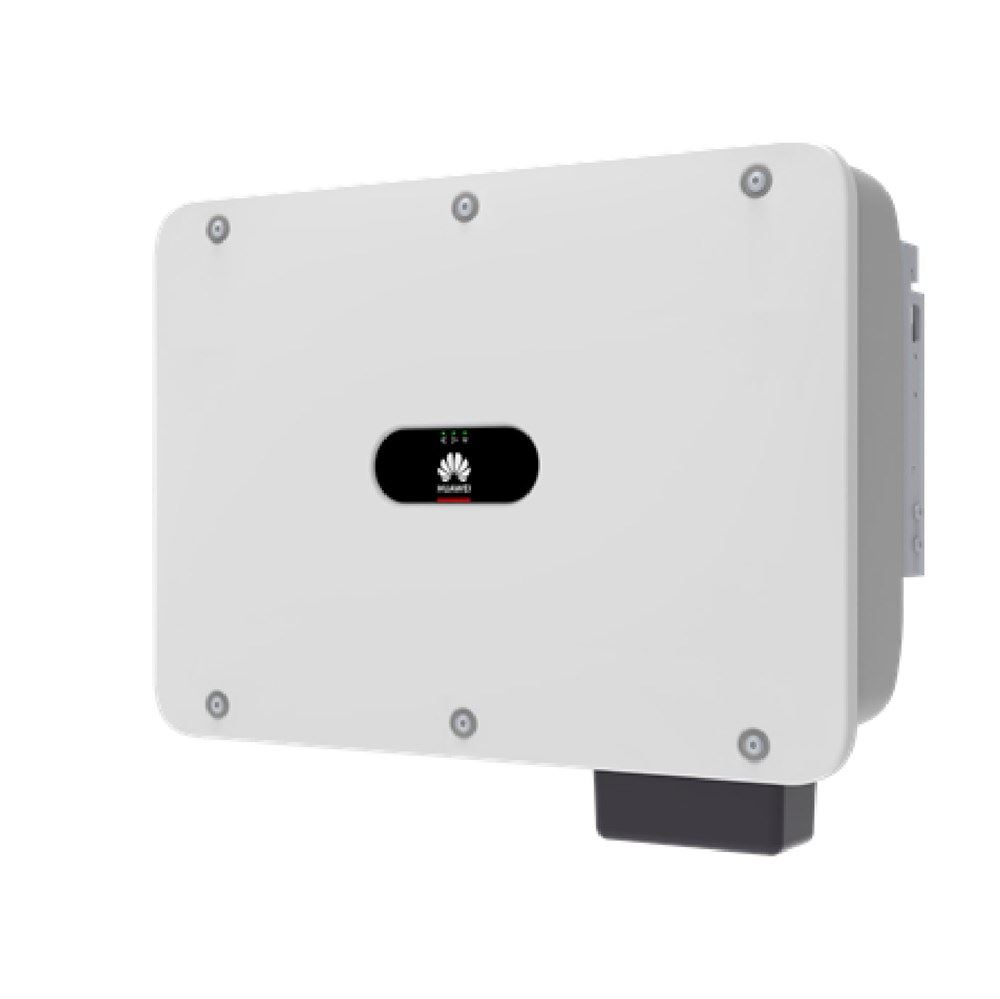

The Huawei SUN2000-40KTL-M3 is an inverter designed for photovoltaic installations, aimed at maximizing the energy yield of both rooftop and ground-mounted PV systems. When paired with power optimizers, it delivers up to 30% higher energy output from the same PV installation.
Note! These inverters come with an extended manufacturer's warranty valid until approximately 2039—verification via serial number is performed upon dispatch.
The Huawei SUN2000 series inverter is designed for three-phase grid operation. It offers superior protection for the photovoltaic system by identifying faulty DC circuits and detecting electric arcs (AFCI) using AI (artificial intelligence) technology. The device boasts a maximum efficiency of 98,7%!
Key features:
- Maximum efficiency of 98,7%
- 4 MPPT inputs
- Input voltage range: 200 to 1000 V
- Compatible with power optimizers
- Built-in leakage current monitoring system
- Smart arc fault detection reduces fire risk
- Ambient temperature range: -25 to +60°C
- LED status indication
- Passive cooling
- Compatible with Smart Dongle WLAN-FE (Wi-Fi + LAN)
- Compatible with SmartLogger 3000A
Operation and installation:
- Easy installation and removal via mounting brackets
- DC reverse polarity protection
- Anti-islanding protection
- Built-in Type II AC and DC surge protection
- Built-in AC overcurrent protection
- Communication via RS485, LAN/WLAN, and 4G GSM network (via Smart Dongle-4G)
- IP65 protection rating
- Dimensions: 640 x 530 x 270 mm
Usage:
- Touchless inverter operation
- Configuration and monitoring via app
- LED indicator on the housing
- Silent operation
- Remote technical support from the manufacturer
- 5-year warranty
