Ground-mounted structure available for order with a 48-hour lead time (business days) from the moment the order is placed.

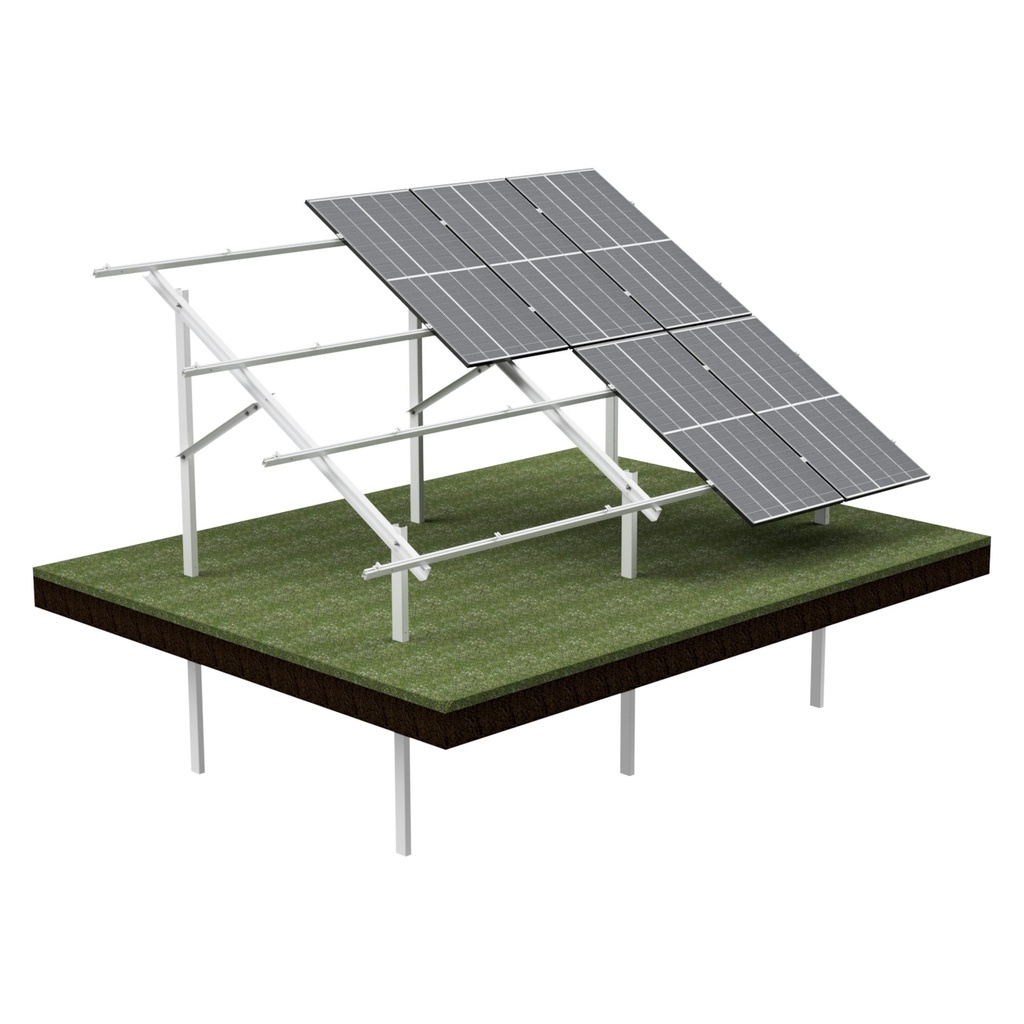

UNIVERSAL FREE-STANDING GROUND-MOUNTED STRUCTURE, DUAL-SUPPORT, VERTICAL ORIENTATION, 2-ROW CONFIGURATION
Vertical layout: for 10 PV modules (2x5)
Maximum module dimensions: 220 x 113,5 cm
Tilt angle: 30°
Mounting method: driven-in (piled)
Wind zone: 1
Snow zone: 3
Terrain category: III
Material (posts): Magnelis-coated steel
Material (rails): Aluminum, EN AW 6063/T66
Warranty: 10 years
Altitude above sea level: max. A = 3,0 m
Height above ground level: max. H = 2,7 m
Post spacing: 250, 240, 230, 220, 210 cm
Manufacturing standards: PN-EN 1090-2, PN-EN 1990, PN-EN 1991-1-3, PN-EN 1991-1-4, PN-EN 1993, PN-EN 1999.
The structure is TUV-certified.
Can be adapted for larger module dimensions.
Black-colored clamps and equipotential bonding clamps are available (for an additional fee). Please specify your preferred clamp type when placing your order.
[KG-DPV 2X5 "L"] KG dual-support mounting system for 10 PV modules (2x5), VERTICAL orientation, for modules up to 113.5 cm in width / 220 cm in height
Specifications
| PV module thickness | 30 or 35 or 40 |
| Clamp color | Black or Silver |
| PIN | PIN or No Pin |
